10Y-3 Stainless steel air cylinder with valve and switch design 10bar

10Y-3 Stainless steel air cylinder with valve and switch design 10bar
10Y-3 Stainless steel air cylinder with valve and switch design 10bar

Imagem Grande :  10Y-3 Stainless steel air cylinder with valve and switch design 10bar

Detalhes do produto:
Lugar de origem: China
Marca: NBSANMINSE
Certificação: ISO9001
Número do modelo: 10A-3
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 10 unidades
Preço: Negociável
Detalhes da embalagem: caixa
Tempo de entrega: 5-30 dias
Termos de pagamento: L/C,T/T
Habilidade da fonte: 10000 unidades
Contato

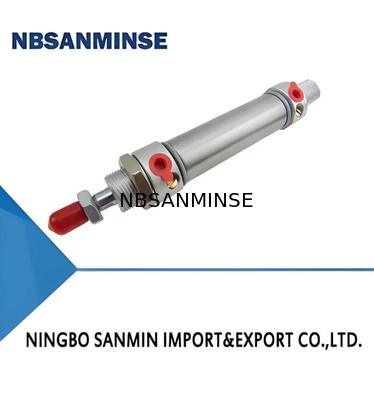

10Y-3 Stainless steel air cylinder with valve and switch design 10bar

descrição
Pressão de prova: 15(barra) Formulário de Amortecimento: almofada do coxim
Corrente de terra arrendada: CA220V,50Hz:0,015A Temperatura operacional: -25 ~ +80(℃)
Subministro de petróleo: Subministro de petróleo Material: SS316 SS304
Destacar:

10Y-3 Model Pneumatic Air Cylinder

,

15 Bar Proof Pressure Air Cylinder

,

Cushion Pad Cushioning Pneumatic Cylinder

I. Features:

1.Stainless steel cylinder block, with end caps connected by a new riveting process, featuring small axial dimensions, light weight and elegant appearance.

2.Good performance, high reliability and strong corrosion resistance.

3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.

4.Both ends adopt adjustable speed pneumatic cushioning structure, suitable for occasions requiring large cushioning.

II. Model

Standard Type

10Y-3 Stainless steel air cylinder with valve and switch design 10bar 0

With Switch Type

10Y-3 Stainless steel air cylinder with valve and switch design 10bar 1

With Valve Type

10Y-3 Stainless steel air cylinder with valve and switch design 10bar 2

With Valve and Switch Type

10Y-3 Stainless steel air cylinder with valve and switch design 10bar 3

①  Cylinder Model See Cylinder Performance Table for details
② Installation Form See the diagram on the next page for details
⑤ Rear Cover Form See the diagram on the next page for details
Code S P K
 Name Basic Type Axial Port FD-13RV
⑥ Valve Operation Mode A: Push Type when Energized
B: Pull Type when Energized
⑦ Valve Operating Voltage 5:AC220V 50HZ
8:DC24V
⑧ Switch Model See Switch Performance Table for details
Code K H
 Name FD-03R FD-13RV
⑨ Number of Switches
⑩ Rod End Connection Accessories See Diagram 10Y-1 for details

III. Graphical Symbols and Appearance

10Y-3 Stainless steel air cylinder with valve and switch design 10bar 4

IV. Main Technical Parameters
1.Main Technical Parameters of Cylinder
Variety Standard Type Switch-Equipped Type Mesh-Equipped Type Mesh & Switch-Equipped Type
Model 10Y-3 10Y-3R 10Y-3V 10Y-3K
Cylinder Bore (mm) Φ25,Φ32,Φ40,Φ50
Maximum Stroke (mm) Φ25:400;Φ32:500;Φ40:600;Φ50:800
Minimum Stroke (mm) Unrestricted 37  Unrestricted 37
Operating Pressure Range (bar) 0.5～10 1.5～10
Pressure Resistance (bar) 15
Operating Speed Range (mm/s) 50～700 50～500
Operating Temperature Range (℃) -25 ~ +80 (under non-freezing conditions)
Operating Medium Dry & clean compressed air
Cushion Type Adjustable air cushion

2. Main Technical Parameters of Switch

Parameter 2/5 Way Single Solenoid Operated Directional Valve
Variety A: Push Type when Energized B: Pull Type when Energized
Rated Voltage AC220V,50Hz;DC24V
Allowable Voltage Fluctuation ±10%
Starting Current AC220V,50Hz;0.028A
Holding Current AC220V,50Hz:0.015A;DC24V:0.09A
Power Consumption AC220V,50Hz:1.8W
DC24V:2.2W
Insulation Class B
Operating Pressure Range  1.5～10bar

V. Outline and Installation Dimensions

10Y-3 Stainless steel air cylinder with valve and switch design 10bar 5

10Y-3 Stainless steel air cylinder with valve and switch design 10bar 6

Note:
1.The dimensions of cylinder accessories for the 10Y-3 series cylinders are the same as those for the 10Y-1 cylinders with Φ25～Φ50. Therefore, when calculating the installation dimensions of 10Y-3 cylinders, they can be calculated by referring to this table and the dimensions table of cylinder accessories for the 10Y-1 series.

2.Please refer to the installation forms and rod end connection forms of the 10Y-1 series for the installation forms and rod end connection forms of 10Y-3 with Φ25～Φ40.
